19-24W SERIES

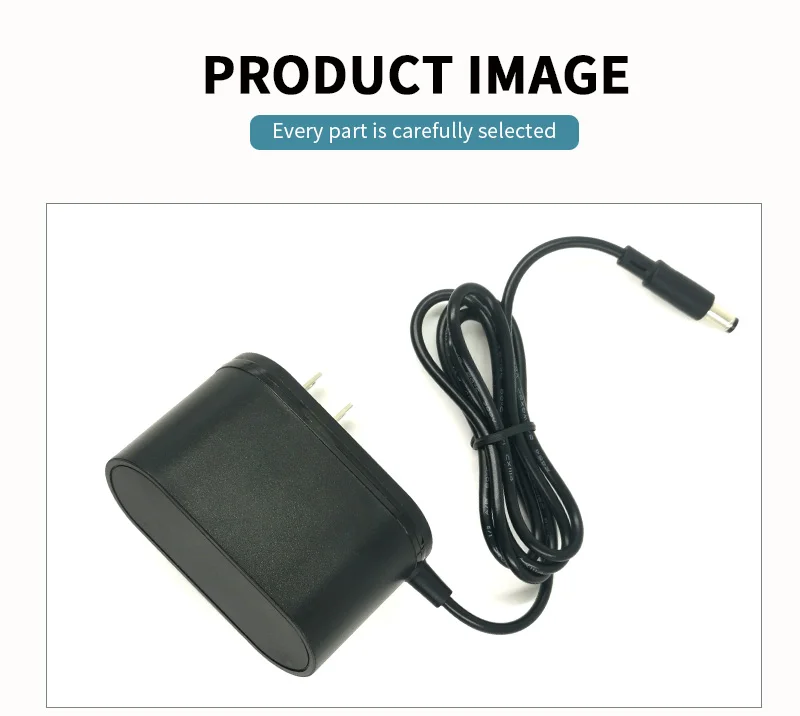

CKS Black Electric Source Adapter 12v 2a Security Monitoring Power Camera Us Dc Adattatore

CKS black power adapter 12V 2A, suitable for security surveillance cameras.  Input voltage should be 12V, with a maximum device power of 24W (or 2A).  Plug size is 5.5mm outer diameter, 2.1mm inner tip, positive polarity.

  • Overview
  • Related Products
CHECK IF IT’S SUITABLE FOR YOU:
Your device’s input voltage should be 12V. Maximum power of your device should not exceed 24W (or 2 Amp). Barrel diameter should be 5.5mm while internal tip should be 2.1mm and positive.

CE CERTIFICATION:
Certified by CE, it safely charges your devices with multi-protection from overheating, over-voltage, over-current, and short circuit. Wide voltage range from 100V to 240V makes it suitable for travel.

NOTE: This item is not waterproof. Please use indoors only.
Related Products
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-0
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-1
Products Description
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-2
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-3
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-4
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-5
Input
AC100-240V 50/60Hz
DC voltage
12VDC
Rated current
2A
Rated power
24W
Ripple&Noice
200Vp-p
Voltage ADJ. Range
11.4V-12.6V
Voltage tolerance
±5%
Hold time
30ms/230VAC, 12ms/110VAC at full load
Operating Temperature
0℃- +40℃
Storage Tempereture
-10℃- +70℃

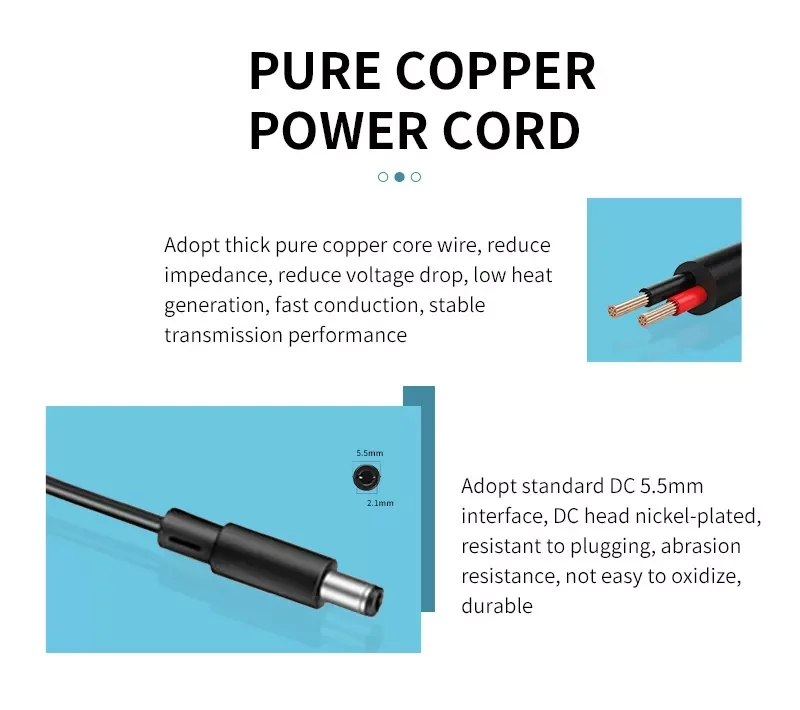

DC Cable
1.2M

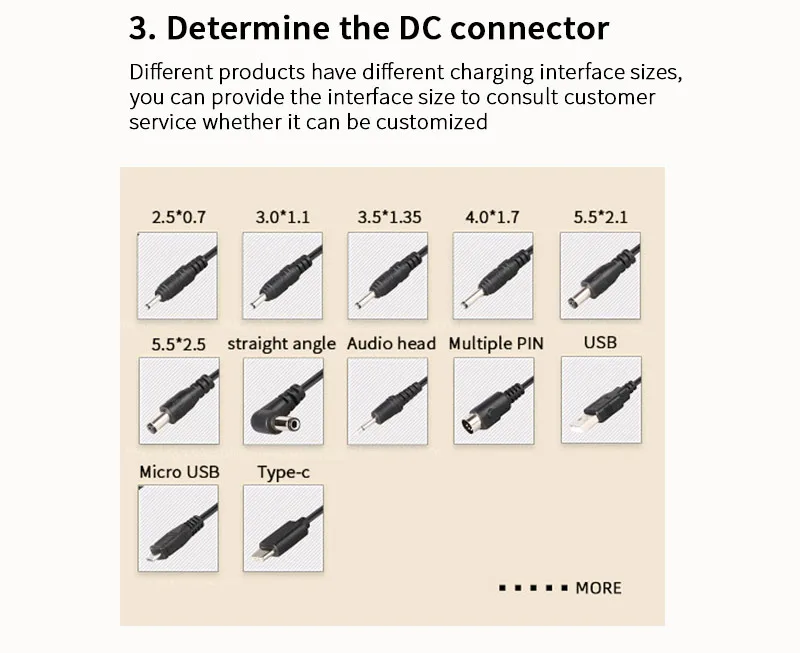

DC Connector
5.5*2.1mm
Package
White Box
Dimension
78*34*50mm(L:W:H)



NOTE
1. Ripple&Noice are tested at 20MHZ of bandwidth by testing parallely connecting a 0.1uf and 10uf ceramic capactior.
2. Please make sure the product parameter meet your equipment before using.
3. All product parameters may change subject to actual test.
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-6
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-7
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-8
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-9
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-10
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-11
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-12
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-13
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-14
Order Process
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-15
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-16
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-17
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-18
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-19
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-20
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-21
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-22
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-23
Packaging
PACKAGE:
Inner PE bag+white or color box for each one and outer carton, 100pcs/ctn
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
product cks black electric source adapter 12v 2a security monitoring power camera us dc adattatore-24
FAQ
Q1: Are you factory or trading company?
Answer: We are a manufacturer with 14 years of professional R&D, production and sales of power adapters. We have our own engineers, molds, and production equipment. We can develop power adapters according to customer needs.

Q2: Can I take samples for testing?

Answer: 1-3 samples are free, but the express delivery fee needs to be paid by you.

Q3: How can I get the price?
Answer: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in
your email so that we will regard you inquiry priority.

Q4: What's your MOQ?
Answer: Minimum order of 100pcs, 2000PCS if ODM/OEM order.

Q5: What certifications do you have?
Answer: We have CCC CE FCC ROHS CB certifications.

Q6: What's your payment item?
Answer: We accept T/T in advance, Westerm Union, L/C, D/P ect.

Q7: What about shipment?
Answer: We can ship goods by express, by sea and air, you can choose different shipment ways as your request.
